S1FB1ABWANS000 1" METAL PUMP (Buna)

$1,269.55
Shipping:
Calculated at checkout
Quantity:

Product Description

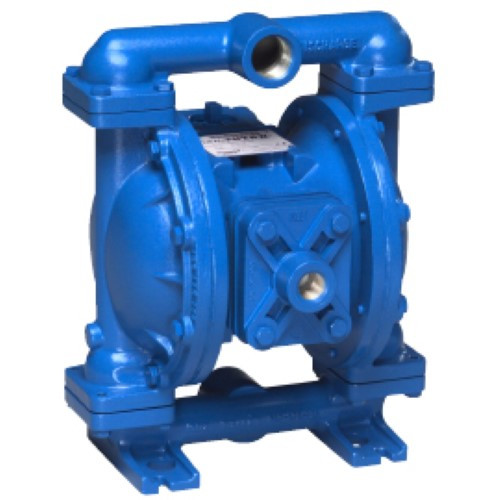

S1F S1FB1ABWANS000 WARREN RUPP 1" METAL PUMP

Min Flow Rate - Gpm 0
Max Flow Rate - Gpm 45
Min Flow Rate - Lpm 0
Max Flow Rate - Lpm 170
Min Discharge Pressure - Psi 0
Max Discharge Pressure - Psi 125
Min Discharge Pressure - Bar 0
Max Discharge Pressure - Bar 8.6
Min Reqd Air Inlet Pressure - Psi 0
Max Reqd Air Inlet Pressure - Psi 125
Min Reqd Air Inlet Pressure - Bar 0
Max Reqd Air Inlet Pressure - Bar 8.6
Min Air Consumption - Scfm 0
Max Air Consumption - Scfm 40
Min Air Consumption - Cmph 0
Max Air Consumption - Cmph 68
Max Temp - F 190
Min Temp - F -10
Max Temp - C 88
Min Temp - C -23
Displacement Per Stroke - Gal 0.11
Displacement Per Stroke - Ltr 0.42
Max Solids Handling - In 0.25
Max Solids Handling - Mm 6
Wetted Material Aluminum
Seat Material UHMW Polyethylene
Diaphragm Material Buna
Check Valve Material Buna
Check Type Ball Valve
Non-wetted Material Aluminum
Height - In 12.88
Height - Mm 327.09
Depth - In 9.09
Depth - Mm 264
Width - In 10.25
Width - Mm 260
Weight - Lbs 28
Weight - Kg 13
Porting Type NPT Threads
Pump Options Intregal
Kit Options None
